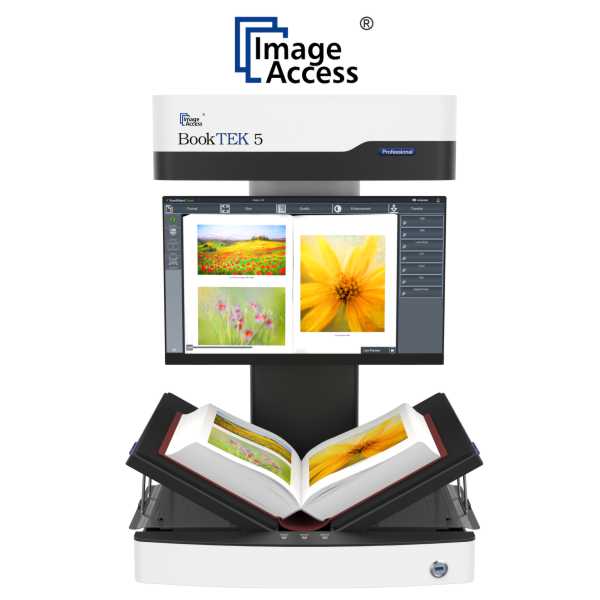

Professional book scanner for high-volume digitization
The BookTEK 5 V3 is engineered for institutions that demand consistent image quality, fast throughput, and reliable performance every day. Its intelligent scanning technology handles fragile books, bound volumes, maps, or archival documents with precision while maintaining impressive operating speed.
At Vikmans we provide training, onboarding and workflow support to help teams get productive quickly.
Exceptional Image Quality
Powered by a high-resolution CCD sensor and laser-guided autofocus, the BookTEK 5 V3 captures every page with clarity. The camera adapts to the shape of bound materials, ensuring accurate scans even with curved pages or varying thickness.

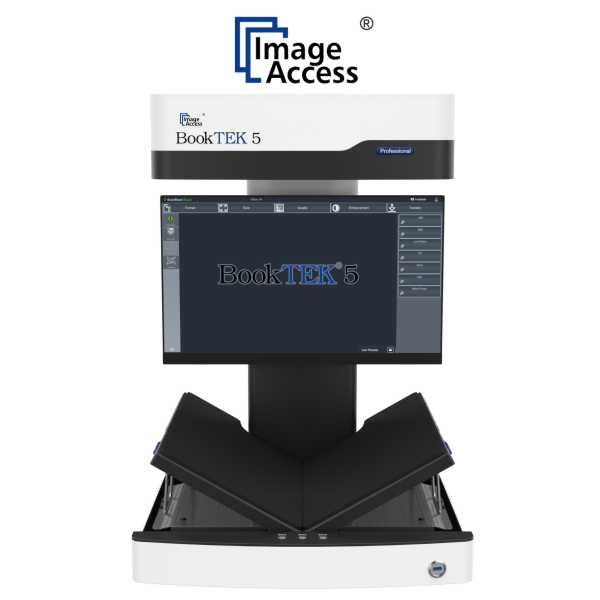

Advanced Book Cradle System

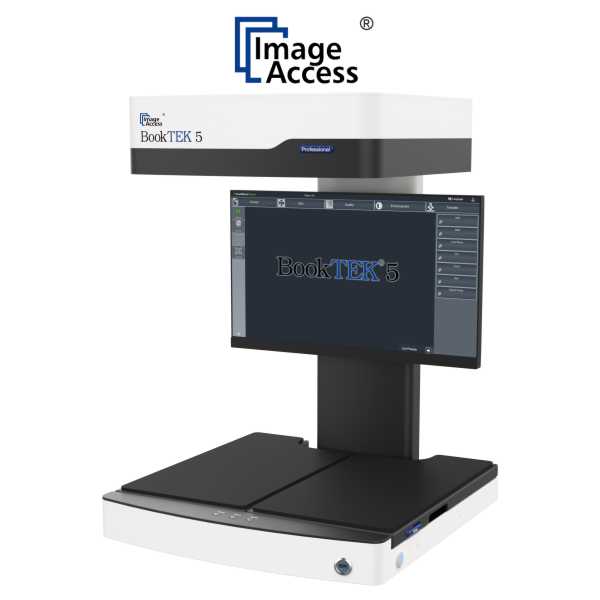

A 120° V-position cradle protects bindings while delivering distortion-free results. Switch to flat mode for newspapers or oversized sheets.
Operator-Friendly Design
21″ Full HD multitouch display and optional dual-screen preview speed up checks and improve operator efficiency.
Fast Deployment & Integration
Quick setup and Scan2Net® integration for networked workflows; Vikmans provides onboarding and support to get teams running fast.
Compact & Efficient
A3+ scanning capacity in a compact footprint — deploy multiple units where space is limited.
Specifications
| Document | |
|---|---|
| Maximum Document Size | 390 × 480 mm (15.3 × 18.9″), 50% more than DIN/ISO A3 |
| Output | |
| Scanner Resolution | 400 × 400 dpi (optional 600 × 600 dpi) |
| Pixel Dimension | 9.3 × 9.3 µm |
| Scan Speed (Color) | 150 dpi: 0.8s · 200 dpi: 0.9s · 300 dpi: 1.3s · 400 dpi: 1.7s · 600 dpi: 2.4s |
| Color Depth | 48-bit color, 16-bit grayscale |
| Scan Output | 24-bit color, 8-bit indexed, grayscale, bitonal |
| File Formats | PDF/A, TIFF, JPEG, PNG, BMP, DWF, JBIG, DjVu, DICOM, PCX, EPS, RAW |
| ICC Profiles | sRGB, Adobe RGB, native; Scan2ICC support |
| Quality | Exceeds FADGI ****, ISO 19264-1 |
| Technical Specifications | |
| Computer | 64-bit Linux, Intel i3 (Gen 8), 240GB SSD, 8GB RAM |
| Touchscreen | 21″ Full HD 1920×1080 multitouch |
| USB | 1× USB 3.0, 4× USB 2.0 |
| Interface | 2.5 Gbit Ethernet, Scan2Net® |
| Camera | CCD, 22,500 pixels (≈245 MPixel) |
| Light Source | White LEDs, IEC 62471 certified |
| Dimensions | |
| Size (H×W×D) | 720 × 510 × 540 mm (28 × 20 × 21″) |
| Weight | 29 kg (64 lbs) |
| Electrical Specifications | |
| Power | 100–240 V AC, 47–63 Hz (CEC VI) |
| Consumption | Off 0.3W · Sleep 4.6W · Ready 40W · Active 110W |
| Ambient Conditions | |
| Operating Temp | 5–40 °C (40–105 °F) |
| Humidity | 20–80% non-condensing |
| Noise | < 42 dB(A) scanning / < 33 dB(A) standby |
